Application::	General	Medium Type::	Water, steam and oil etc.
Mounting Type::	Direct Mount	Standard Or Non-Standard::	Standard
Flow way::	Two way	Actuation::	Manual, Electric, Pneumatic,Automatic
Sealing Performance::	Sealing	Working Temperature::	Normal Temperature And High Temperature
Pressure Application::	Normal Pressure	Quality Warranty::	18 Months

Application::	General
Medium Type::	Water, steam and oil etc.
Mounting Type::	Direct Mount
Standard Or Non-Standard::	Standard
Flow way::	Two way
Actuation::	Manual, Electric, Pneumatic,Automatic
Sealing Performance::	Sealing
Working Temperature::	Normal Temperature And High Temperature
Pressure Application::	Normal Pressure
Quality Warranty::	18 Months

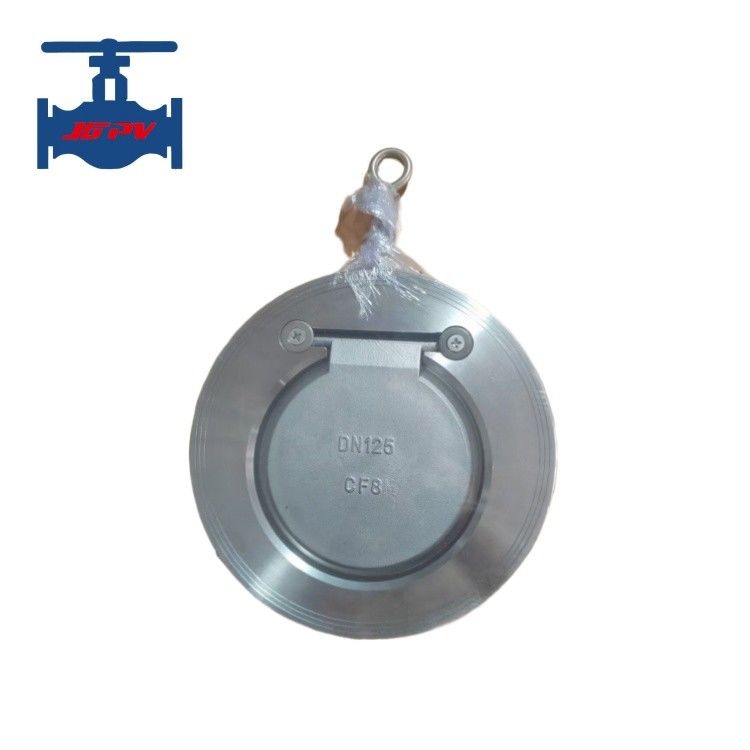

Single disc wafer check valve

Highlight: Single disc wafer check valve

Product introduction:

Wafer-type single-disc check valves are valves that automatically prevent fluid backflow. The valve disc opens under the

action of fluid pressure, allowing fluid to flow from the inlet side to the outlet side. When the pressure on the inlet side is

lower than that on the outlet side, the valve disc automatically closes under the influence of factors such as fluid pressure

differential and its own gravity to prevent fluid backflow. They are mainly suitable for water supply systems, as well as

industrial sectors such as petroleum, chemical, and metallurgy, especially in places with installation space limitations.

Product technical parameters:

Nominal Diameter DN (mm)		40～600
Nominal Pressure PN (MPa)		1.0～6.4
Working Temperature		-20℃～150℃
Suitable Medium		Water, steam, oil products, nitric acid, acetic acid, etc.
Main Components	Body	WCB Stainless Steel
	Disc	Cast Steel, Stainless Steel
	Spring	201 304 316
	Sealing Ring	Nitrile Butadiene Rubber (NBR), Ethylene Propylene Diene Monomer (EPDM), Polytetrafluoroethylene (PTFE), Stainless Steel

Product features:

1. Compact structure and light weight

2. Beautiful appearance and easy installation

3. Long service life and high reliability
